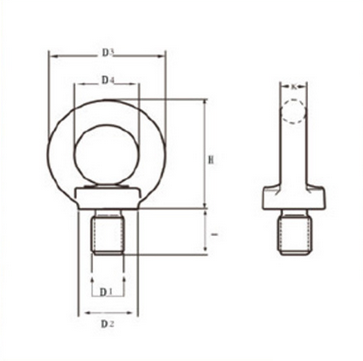

主要技术参数 Main technical parameters |
WLL2 (t) |
WLL1 (t) |
重量weight（kg） |
||||||
|
D1 |
D2 |
D3 |
D4 |
H |
K |
I |
|||
|
M6 |
17.0 |
28.0 |
16.0 |
31.0 |
6.00 |
13.0 |
0.095 |
0.14 |
5.00 |
|
M8 |
20.0 |
36.0 |
20.0 |
36.0 |
8.00 |
13.0 |
0.095 |
0.14 |
6.00 |
|
M10 |
25.0 |
45.0 |
25.0 |
45.0 |
10.0 |
17.0 |
0.17 |
0.23 |
11.0 |
|
M12 |
30.0 |
54.0 |
30.0 |
53.0 |
12.0 |
20.5 |
0.24 |
0.36 |
18.0 |
|
M14 |
35.0 |
63.0 |
35.0 |
62.0 |
14.0 |
27.0 |
---- |
---- |
28.0 |
|
M16 |
35.0 |
63.0 |
35.0 |
62.0 |
14.0 |
27.0 |
0.50 |
0.70 |
28.0 |
|
M18 |
40.0 |
72.0 |
40.0 |
71.0 |
16.0 |
30.0 |
---- |
---- |
45.0 |
|
M20 |
40.0 |
72.0 |
40.0 |
71.0 |
16.0 |
30.0 |
0.83 |
1.20 |
45.0 |
|
M22 |
45.0 |
81.0 |
45.0 |
80.5 |
18.0 |
35.0 |
---- |
---- |
67.0 |
|
M24 |
50.0 |
90.0 |
50.0 |
90.0 |
20.0 |
36.0 |
1.27 |
1.80 |
87.0 |
|
M27 |
50.0 |
90.0 |
50.0 |
90.0 |
20.0 |
38.0 |
---- |
---- |
88.0 |
|
M30 |
65.0 |
108 |
60.0 |
109 |
24.0 |
45.0 |
2.60 |
3.60 |
166. |
|
M33 |
65.0 |
108 |
60.0 |
109 |
24.0 |
45.0 |
---- |
---- |
166 |
|
M36 |
75.0 |
126 |
70.0 |
128 |
28.0 |
54.0 |
3.70 |
5.10 |
265 |
|
M39 |
85.0 |
144 |
80.0 |
147 |
32.0 |
63. |
---- |
---- |
403 |
|
M42 |
85.0 |
144 |
80.0 |
147 |
32.0 |
63.0 |
5.00 |
7.00 |
403 |
|
M45 |
100 |
166 |
90.0 |
168 |
38.0 |
68.0 |
---- |
---- |
638 |
|
M48 |
100 |
166 |
90.0 |
168 |
38.0 |
68.0 |
6.10 |
8.60 |
638 |
|
M52 |
110 |
184 |
100 |
187 |
42.0 |
78.0 |
---- |
---- |
880 |
|
M56 |
110 |
184 |
100 |
187 |
42.0 |
78.0 |
8.30 |
11.5 |
880 |
|
M64 |
120 |
206 |
110 |
208 |
48.0 |
90.0 |
11.0 |
16.0 |
1240 |
|
M72 |
150 |
260 |
140 |
260 |
60.0 |
100 |
15.0 |
21.0 |
2330 |
|
M80 |
170 |
296 |
160 |
298 |
68.0 |
112 |
20.0 |
28.0 |
3420 |
|
M100 |
190 |
330 |
180 |
330 |
75.0 |
130 |
27.0 |
38.0 |
4910 |
