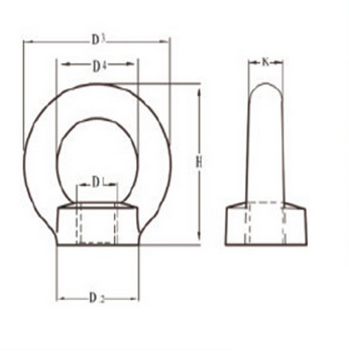

主要技术参数 Main technical parameters |
WLL2(t) |
WLL1(t) |
重量weight |
|||||
|
D1 |
D2 |
D3 |
D4 |
H |
K |
|||
|
M6 |
17.0 |
28.0 |
16.0 |
31.0 |
6.00 |
0.095 |
0.14 |
4.80 |
|
M8 |
20.0 |
36.0 |
20.0 |
36.0 |
8.00 |
0.095 |
0.14 |
5.00 |
|
M10 |
25.0 |
45.0 |
25.0 |
45.0 |
10.0 |
0.17 |
0.23 |
9.00 |
|
M12 |
30.0 |
54.0 |
30.0 |
53.0 |
12.0 |
0.24 |
0.36 |
16.0 |
|
M14 |
35.0 |
63.0 |
35.0 |
62.0 |
14.0 |
---- |
---- |
24.0 |
|
M16 |
35.0 |
63.0 |
35.0 |
62.0 |
14.0 |
0.50 |
0.70 |
24.0 |
|
M18 |
40.0 |
72.0 |
40.0 |
71.0 |
16.0 |
---- |
---- |
36.0 |
|
M20 |
40.0 |
72.0 |
40.0 |
71.0 |
16.0 |
0.83 |
1.20 |
36.0 |
|
M22 |
45.0 |
81.0 |
45.0 |
80.0 |
18.0 |
---- |
---- |
58.0 |
|
M24 |
50.0 |
90.0 |
50.0 |
90.0 |
20.0 |
1.27 |
1.80 |
72.0 |
|
M27 |
50.0 |
90.0 |
50.0 |
90.0 |
20.0 |
---- |
---- |
70.0 |
|
M30 |
65.0 |
108 |
60.0 |
109 |
24.0 |
2.60 |
3.60 |
132 |
|
M33 |
65.0 |
108 |
60.0 |
109 |
24.0 |
---- |
---- |
130 |
|
M36 |
75.0 |
126 |
70.0 |
128 |
28.0 |
3.70 |
5.10 |
208 |
|
M39 |
85.0 |
144 |
80.0 |
147 |
32.0 |
----- |
---- |
202 |
|
M42 |
85.0 |
144 |
80.0 |
147 |
32.0 |
5.00 |
7.00 |
311 |
|
M45 |
100 |
166 |
90.0 |
168 |
38.0 |
--- |
---- |
304 |
|
M48 |
100 |
166 |
90.0 |
168 |
38.0 |
6.10 |
8.60 |
502 |
|
M52 |
110 |
184 |
100 |
187 |
42.0 |
---- |
---- |
495 |
|
M56 |
110 |
184 |
100 |
187 |
42.0 |
8.30 |
11.5 |
669 |
|
M64 |
120 |
206 |
110 |
208 |
48.0 |
11.0 |
16.0 |
930 |
|
M72×6 |
150 |
260 |
140 |
260 |
60.0 |
15.0 |
21.0 |
1850 |
|
M80×6 |
170 |
296 |
160 |
298 |
68.0 |
20.0 |
28.0 |
2730 |
|
M100×6 |
190 |
330 |
180 |
330 |
75.0 |
27.0 |
38.0 |
3640 |
